Mini Cam WIFI Camera SQ11 SQ12 SQ13 SQ23 Night Vision Waterproof

Sale!

Mini Cam WIFI Camera SQ11 SQ12 SQ13 SQ23 Night Vision Waterproof

$12.95 – $41.95
Clear
SKU: 32965758374 Category:

Description



SQ11

SQ12

SQ13

SQ23

Hot Spot WIFI

No

No

YES

YES

Motion Detection

YES

YES

NO

NO

Night Vision

YES

YES

YES

YES

Video Format

AVI

AVI

AVI

AVI

Video Coding

M-JPEG

M-JPEG

M-JPEG

M-JPEG

Video Resolution

1920*1080HD

1920*1080HD

1920*1080HD

1920*1080HD

Video Frame Rate

30fps

30fps

30fps

30fps

Picture Format

JPG

JPG

JPG

JPG

Save Support

TF Card

TF Card

TF Card

TF Card

Max Supported TF Card

32GB

32GB

32GB

32GB

Battery Capacity

200mAh

200mAh

200mAh

200mAh

Working Time

About 100 min

About 80 min

About 90 min

About 90 min

Image Proportion

4:3

16:9

16:9

16:9

Charging Voltage

DC-5V

DC-5V

DC-5V

DC-5V

Interface Type

Mini8Pin USB

Mini8Pin USB

Micro USB2.0

Micro USB2.0

Original Mini Cam WIFI Camera SQ13 SQ23 SQ11 SQ12 FULL HD 1080P Night Vision Waterproof Shell CMOS Sensor Recorder Camcorder

Introduction
SQ11 Features
Sensor:2Mega CMOS sensor GC1024
Aperture: F 2.0
Focal Length:f=2.9mm
Optical FOV(D):140
Optical FOV(H):90
Memory:TF Card,up to 32GB(not included)
Microphone:Built-in
Battery:3.7V 200mAh
USB:High Speed USB2.0 Micro
Size:23*23*23mm
Net Weight:20g
Image Resolution:12M(4032*3024)
File Format:JPEG
Image Proportion:4:3
Video
Video Resolution:1920*1080P  1280*720P
Video Frame Rate:30FPS
video (compression) Format:AVI(M-JPEG)
Continous Video Recording Time:Video Recording 100 minutes
Parameters
Operating Temperature: -10~50 Celsius
Storage Temperature: -10~70 Celsius
Humidity environment: 5%-90%(No condensation）
Certification: CCC,CE,FCC
Plastics Accessories: have
Montion Detection:Support
TV Out:Support
Transmission Rate:High Speed USB2.0
Interface Type:Mini 8PIN USB
Support Sytem:Windows ME/2000/XP/2003/VISTA. MAC OS.LINUX
Package including
1*SQ11 Host(Comes with original box)
1*Universal Bracket
1*Clip
1*USB/TV Out 2 in 1 Cable
1*Instructions
SQ12 Feaures
Sensor:2Mega CMOS sensor GC1024
Aperture: F 2.5
Focal Length:f=2.33mm
Optical FOV(D):155
Optical FOV(H):97
Optical FOV(V):72
Memory:TF Card,up to 32GB(not included)
Microphone:Built-in
Battery:3.7V 200mAh
USB:High Speed USB2.0 8PIN
Size:24.5*24.5*25.5mm
Net Weight:11g
Image Resolution:12M(4032*3024)
File Format:JPEG
Image Proportion:16:9
Video
Video Resolution:1920*1080P
Video Frame Rate:30FPS
video (compression) Format:AVI(M-JPEG)
Continous Video Recording Time:Video Recording 80 minutes
Parameters
Operating Temperature: -10~50 Celsius
Storage Temperature: -10~70 Celsius
Humidity environment: 5%-90%(No condensation）
Certification: CCC,CE,FCC
Plastics Accessories: have
Montion Detection:Support
TV Out:Support
Transmission Rate:High Speed USB2.0
Interface Type:Mini 8PIN USB
Support Sytem:Windows ME/2000/XP/2003/VISTA. MAC OS.LINUX
Package including
1*SQ12 Host(Comes with original box)
1*Main Body Back Clamp
1*Base Bracket
1*Waterproof Shell Body
1*Waterproof Shell Base Support
1*Waterproof Shell Back Clamp
1*Waterproof Shell Strap Buckle
1* Data Line
1*Instructions
SQ13 Features

Sensor:2Mega CMOS sensor GC1024
Aperture: F 2.5
Focal Length:f=2.33mm
Optical FOV(D):155
Optical FOV(H):97
Optical FOV(V):72
Memory:TF Card,up to 32GB (not inlcuded)
Microphone:Built-in
Battery:3.7V 300mAh
USB:MicroUSB2.0 5PIN
Size:29.9*28*28mm
Net Weight:24.1g
Image Resolution:12M(4032*3024)
File Format:JPEG
Image Proportion:16:9
Video
Video Resolution:1920*1080P
Video Frame Rate:30FPS
video (compression) Format:AVI(M-JPEG)
Continous Video Recording Time:Video Recording 90minutes
Parameters
Operating Temperature: -10~50 Celsius
Storage Temperature: -10~70 Celsius
Humidity environment: 5%-90%(No condensation）
Certification: CCC,CE,FCC
Plastics Accessories: have
Montion Detection: Not Support
TV Out:Support
Transmission Rate:High Speed USB2.0
Interface Type:Micro USB
Support Sytem:Windows ME/2000/XP/2003/VISTA. MAC OS.LINUX
Package including
1*SQ13 Host(Comes with original box)
1*Universal Bracket
1*Waterproof Shell Body
1*Waterproof Shell Base Support
1*Data Line
1*Instructions
SQ23 Features
Sensor:2Mega CMOS sensor GC1024
Aperture: F 2.5
Focal Length:f=2.33mm
Optical FOV(D):155
Optical FOV(H):97
Optical FOV(V):72
Memory:TF Card,up to 32GB
Microphone:Built-in
Battery:3.7V 300mAh
USB:MicroUSB2.0 5PIN
Size:31*29*29mm
Net Weight:25g
Image Resolution:12M(4032*3024)
File Format:JPEG
Image Proportion:16:9
Video
Video Resolution:1920*1080P
Video Frame Rate:30FPS
video (compression) Format:AVI(M-JPEG)
Continous Video Recording Time:Video Recording 90minutes
Parameters
Operating Temperature: -10~50 Celsius
Storage Temperature: -10~70 Celsius
Humidity environment: 5%-90%(No condensation）
Certification: CCC,CE,FCC
Plastics Accessories: have
Montion Detection: Not Support
TV Out:Support
Transmission Rate:High Speed USB2.0
Interface Type:Micro USB
Support Sytem:Windows ME/2000/XP/2003/VISTA. MAC OS.LINUX
Package including
1*SQ23 Host(Comes with original box)
1*Universal Bracket
1*Waterproof Shell Body
1*Waterproof Shell Base Support
1*Data Line
1*Instructions
HTB1tY4MaDjxK1Rjy0Fnq6yBaFXaS

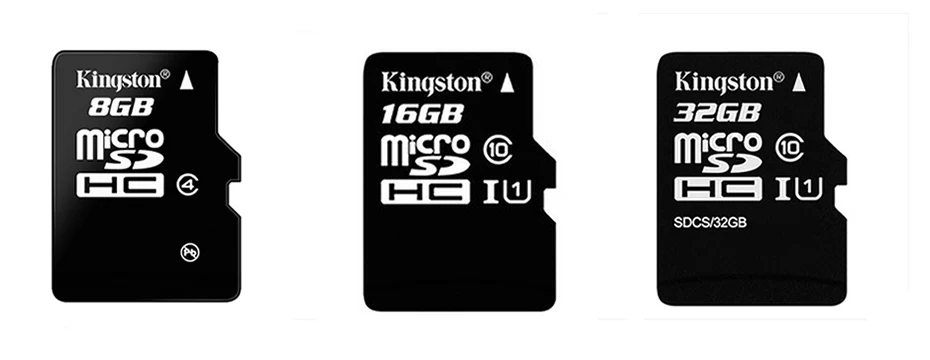

8GB speed card can be used 7.2GB, write about 6MB/S

16GB high-speed card available 14.4GB, write around 12MB/S
32GB high speed card available 28.9GB, write around 12MB/S

C4 speed memory card ordinary card, use: mobile phone, Bluetooth speaker, card speaker, ordinary speed navigator, tablet computer.(can use for SQ11,SQ12,SQ13,SQ23…camera too)
C10 speed memory card is high-speed card, use: driving recorder, high-end navigation, camera, wireless monitoring, tablet, notebook, etc.

Note: the 8GB is Class4 Speed Card, the 16GB and 32GB is Class10 High Speed Card.

SQ11

_01_02_03_04_05_06_07_08_09_10_11_13_14_15_17

SQ11

R4-01_01



R4-01_02R4-01_03R4-01_04R4-01_05R4-01_0601R4-01_06R4-01_07R4-01_08R4-01_09R4-01_10R4-01_11R4-01_12R4-01_13R4-01_14R4-01_15R4-01_16R4-01_17R4-01_19

SQ13

SQ13-_01SQ13-_02SQ13-_03SQ13-_04SQ13-_05SQ13-_06SQ13-_07SQ13-_08SQ13-_09SQ13-_10SQ13-_11SQ13-_12SQ13-_13SQ13-_15

SQ23

sq23-_01sq23-_02sq23-_03sq23-_04sq23-_05sq23-_06sq23-_07sq23-_08sq23-_09sq23-_10sq23-_11sq23-_12sq23-_14sq23-_15sq23-_16



01

02

03

04

window.adminAccountId=122354832;

Additional information

color

Black SQ11, Black SQ12, Black SQ13, Black SQ23, Blue SQ11, Blue SQ23, Red SQ11, Red SQ13, Red SQ23, Silver SQ13
